Products

Bench Lathes from Ammco

Model 4000-SP Single Pass Disc/Drum Lathe

If you're just starting out or need a completely new brake station, Ammco Brake Service Solutions can fill all of your needs. Select from a wide assortment of benches, lathes, micrometers, adapters and other helpful accessories.

· Specifications:

  • small image large image
    Ammco 4000 Drum & Disc Lathe New

· Maximum Rotor Diameter: 14.5"

· Maximum Rotor Thickness: 1.875"

· Brake Drum Diameter: Minimum 6", Maximum 28"

· Maximum Drum Depth: 6.875"

· Spindle Travel: 6.875"

· Spindle Speed: 100 RPM

· Spindle Feed Speed: Drum 0.005 in/rev

· Cross Feed Speed: Rotor 0.002 in/rev

· Maximum Load: Standard 1" Arbor, 100 lbs.

· Rotor Feed Rate: .002"/.010"/REV

· Floor Space Requirements: 48" width x 34.5" depth

· Electrical Requirements: Standard 115v AC, 20A @ 60 Hz, 1Ph

· Shipping Weight: 365 lbs.

· Important: You must order one adapter kit with the 4000-SP.


Model 4100B Medium-Duty Disc/Drum

For Wider Brake Assemblies

The Model 4100B bench lathe has the same basic design and features of our best-selling Model 4000B, but it also offers additional spindle travel to 9.875" (250.83mm).

· Specifications:

  • small image large image
    Ammco Model 4100B Medium-Duty Disc/Drum

· Max Rotor Diameter: 19" *

· * 21" with optional crossfeed extension, part #906936

· Max Rotor Face Width: 3.75"

· Max Rotor Thickness: 4"


· Max Arbor Capacity:

 A: Standard 100 lbs. - B: Heavy Duty 200 lbs. (B is optional)

· Spindle Speed: 100, 200 RPM

· Drum Feed Rate: .002" to .020"/REV

· Rotor Feed Rate: .002"/.010"/REV

· Drum Depth: Up to 9875"

· Shipping Weight: 480 lbs.

· Important: You must order one adapter kit with the 4100B.


Bench Lathes from Rels

Model 2000 Brake Lathe

Features:

·Turn rotors faster and get the best possible finish with the revolutionary variable speed gearbox.

Specials:

· Bench and Hubless Adapters are included with the lathe.

· ALL Metal Gears Internal Parts are Compatible with AMMCO 4000

· Specifications:

  • small image large image
    Rels 2000 Brake Lathe

· Spindle Speed: 150 and 200 RPM

· Spindle Travel: 6-7/8"

· Rotor Width: 1-3/4"

· Rotor Diameter: 17"

· Drum Diameter: 6 to 28"

· Drum / Rotor weight: 150 lbs

· Shipping weight: 685 lbs

Flywheel Grinders from Van Norman

Brake Lathes by AUTO PRO-UP COMPANY

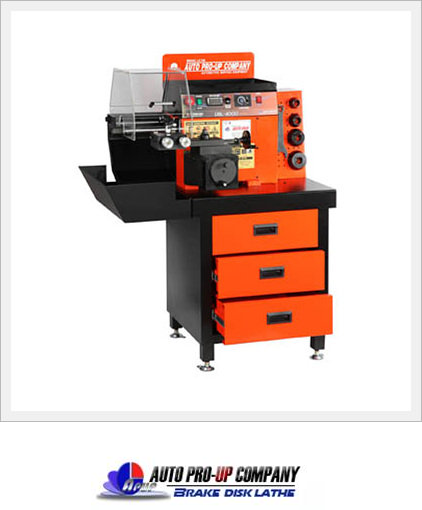

DBL-4000

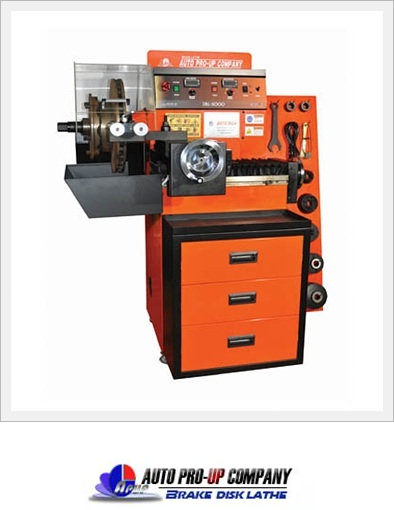

DBL-5000

DBL-9000

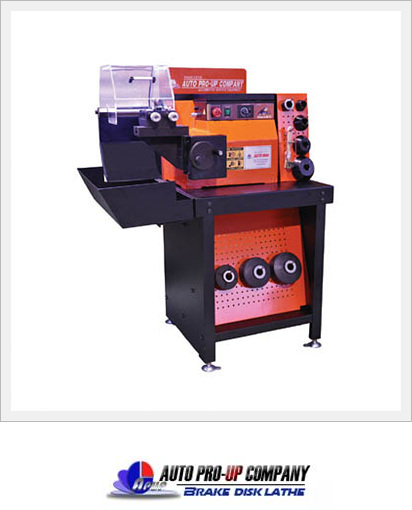

DBL-SMART

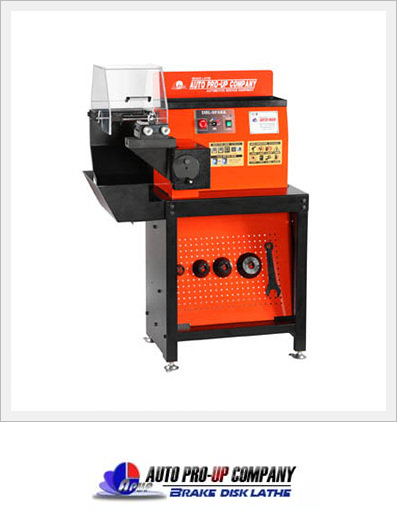

DBL-SPARK

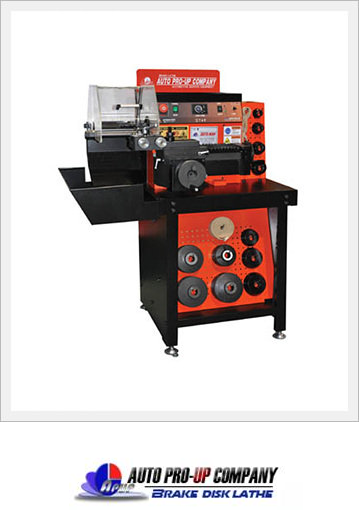

DBL-STAR-BASIC

DBL-STAR-lUXURY
